Works with AC Protein Skimmers and Waste Collectors

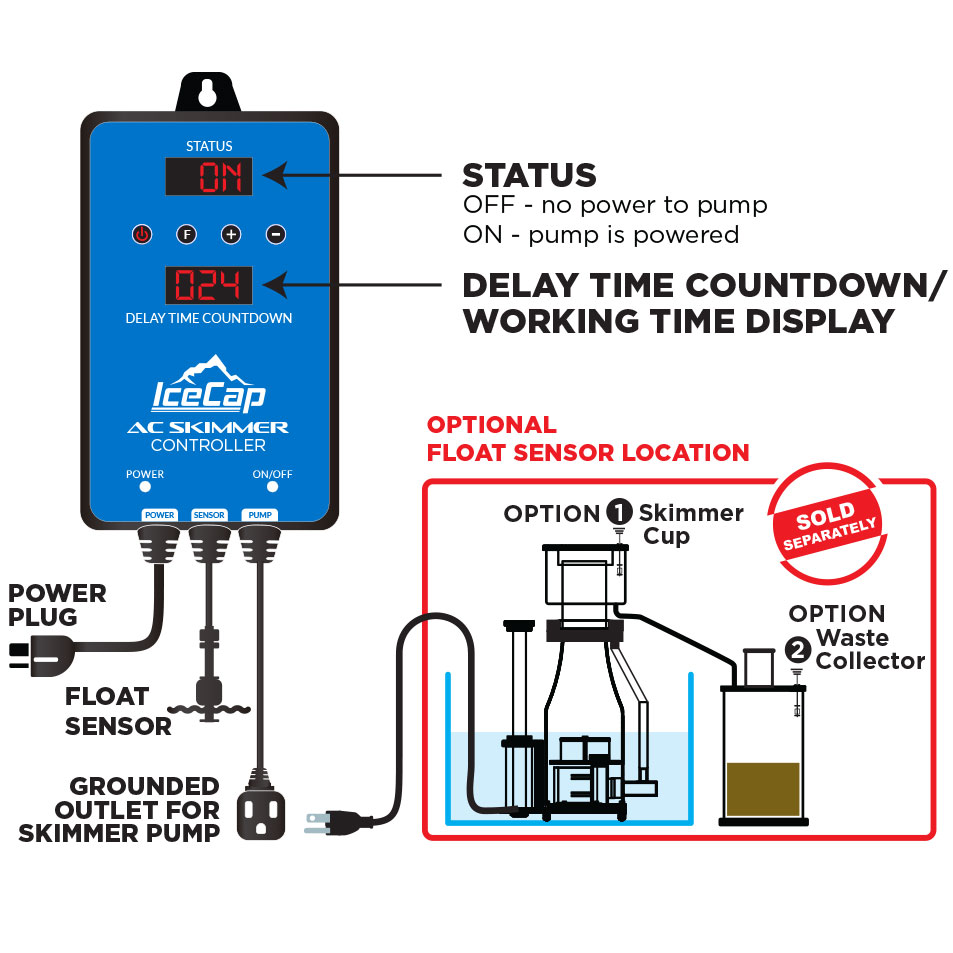

The IceCap AC Skimmer Controller easily connects to a skimmer lid or waste collector (sold separately) and protects from overflow. It also includes a time delay and feed mode for any AC protein skimmer. The controller with a float switch sensor and a single grounded power jack that supports up to 10 amps of power.

Features

Grounded output heater control (single outlet)
Accommodates skimmer pumps up to 10 amps
Float Switch Overflow Protection
Feed Timer (10, 30, 60min)
5-Minute Time Delay
1-year limited warranty

Controller Specifications

Input Power: 100~240VAC
Frequency: 50Hz/60Hz
Relay Contact Capacity: 10A
Controller Body Dimensions: 3.125in x 5.375in x 1.125in (LxWxH)
Float Switch Cord Length: 6ft
Pump Outlet Cord Length: 7in
Delay Time: 5 Minutes
Feed Timer Options: 10min, 30min, 60min
Working Span: 1-24 Hours
Float Switch Probe Hole Size: 3/8in

Controller Only - Requires protein skimmer and/or waste collection container.
NOTE: For Indoor household use only

Red <POWER> LED indicates power ON
Blue <ON/OFF> LED indicates heater power is ON

Button Functions

Hold and press the <POWER> button for 5 sec. to switch the Controller ON or OFF.

Press the <F> button to activate the feed mode, which increases the intervals by 10, 30, and 60 minutes.

Press the <+> or <-> buttons to adjust the running interval for the skimmer pump. Users can modify the interval length (0-24 hours) during which the skimmer will remain powered. The interval starts when the controller is set.
